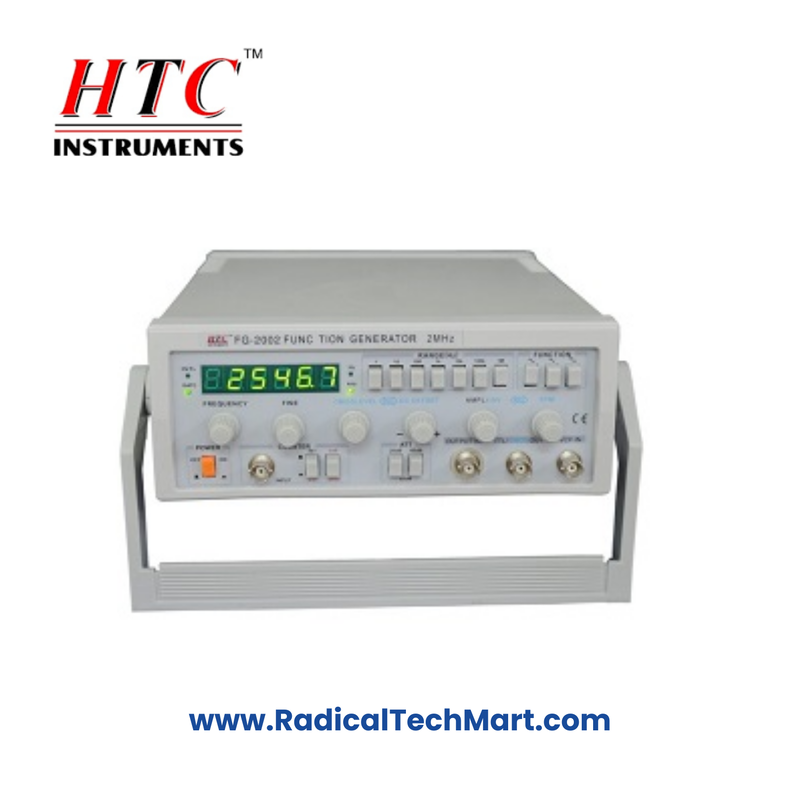

HTC Instruments FG-2002 Function Generator
Non-returnable
₹9,250.00 ₹11,000.00
Product Details
HTC Instruments FG-2002 Function Generator
- Brand: HTC
- Model: FG-2002
- Frequency Range: 0.2Hz - 2MHz
- Warranty: 6 Months
Key Features:
- Display: 5-digit LED display (3 digits dedicated to voltage)
- Simultaneous Display: Frequency and amplitude shown at the same time
- Output Waveforms: Sine wave, square wave, and triangle wave
- Adjustable Duty Cycle: 20% - 80%
- Adjustable Width: Output signal width can be adjusted continuously
- Amplitude Range:
- Without attenuation: 0.9V - 10V
- With -20dB attenuation: 100mV - 1V
- With -40dB attenuation: 10mV - 100mV
